10GH | pdb_000010gh

Cryo-EM structure of Receptor Tyrosine Kinase ROS1 in complex with Fab-RX5

• PDB DOI: https://doi.org/10.2210/pdb10GH/pdb
• EM Map EMD-75151: EMDB EMDataResource
• EM Map EMD-45172: EMDB EMDataResource

• Classification: TRANSFERASE/IMMUNE SYSTEM
• Organism(s): Mus musculus, Homo sapiens
• Expression System: Homo sapiens, Escherichia coli
• Mutation(s): No


• Deposited: 2026-01-19 Released: 2026-02-25
• Deposition Author(s): Li, H., Klein, D.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.06 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Clustering and a conformational switch drive activation of the mammalian receptor tyrosine kinase ROS1

Li, H., Klein, D.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 3-mer - A2B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 165.52 kDa
• Atom Count: 11,659
• Modeled Residue Count: 1,474
• Deposited Residue Count: 1,474
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

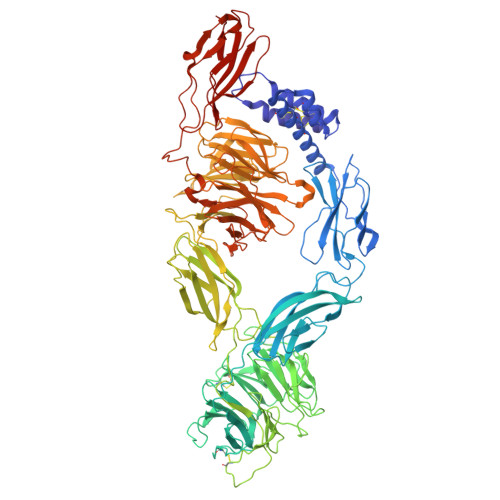

Proto-oncogene tyrosine-protein kinase ROS	A	1,006	Mus musculus	Mutation(s): 0  Gene Names: Ros1, Ros, Ros-1 EC: 2.7.10.1
UniProt
Find proteins for Q78DX7 (Mus musculus) Explore Q78DX7  Go to UniProtKB:  Q78DX7
Glycosylation
Glycosylation Sites: 7		Go to GlyGen: Q78DX7-1

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

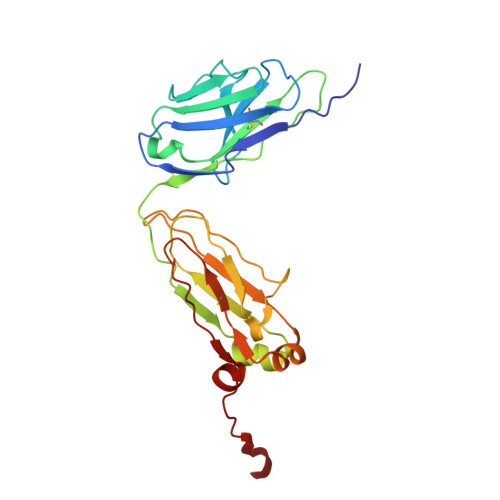

Fab-RX5 light chain	B	230	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

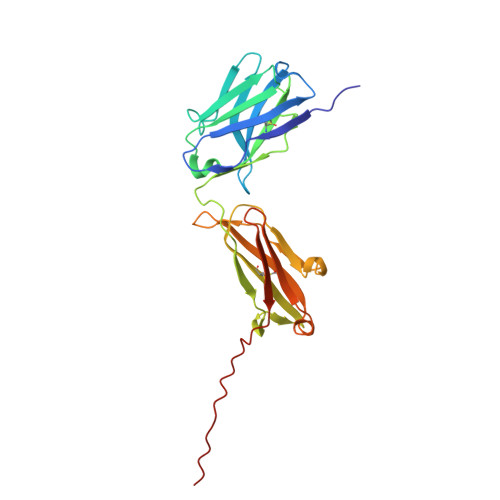

Fab-RX5 heavy chain	C	238	Homo sapiens	Mutation(s): 0

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D [auth E], E [auth D], F	2		N-Glycosylation

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	G [auth A], H [auth A], I [auth A], J [auth A], K [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.06 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419+SVN
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-02-25
Deposition Author(s): Li, H., Klein, D.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2026-02-25
  Type: Initial release
