10BM | pdb_000010bm

Crystal structure of Phosphoribosylaminoimidazole carboxylase from Burkholderia xenovorans (AMP, ADP and sulfate complex)

PDB DOI: https://doi.org/10.2210/pdb10BM/pdb

Classification: LYASE
Organism(s): Paraburkholderia xenovorans LB400
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2026-01-09 Released: 2026-01-21
Deposition Author(s): Seattle Structural Genomics Center for Infectious Disease (SSGCID)
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), National Institutes of Health/Office of the Director

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.49 Å
R-Value Free:
0.249 (Depositor), 0.248 (DCC)
R-Value Work:
0.196 (Depositor), 0.199 (DCC)
R-Value Observed:
0.199 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of Phosphoribosylaminoimidazole carboxylase from Burkholderia xenovorans (AMP, ADP and sulfate complex)

Liu, L., Lovell, S., Battaile, K.P.

To be published.

Macromolecule Content

Total Structure Weight: 174.19 kDa
Atom Count: 11,740
Modeled Residue Count: 1,544
Deposited Residue Count: 1,588
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

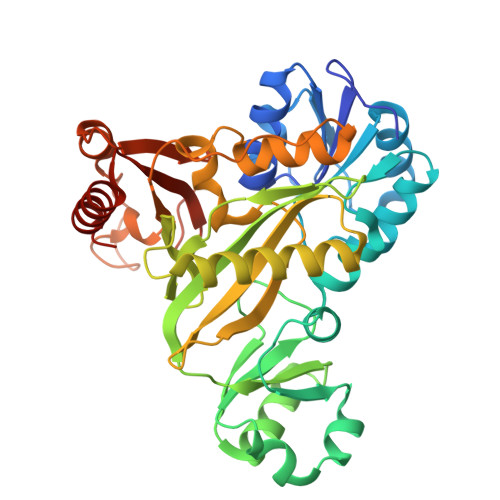

N5-carboxyaminoimidazole ribonucleotide synthase	A, B, C, D	397	Paraburkholderia xenovorans LB400	Mutation(s): 0 Gene Names: purK, Bxe_A0694 EC: 6.3.4.18
UniProt
Find proteins for Q13UJ9 (Paraburkholderia xenovorans (strain LB400)) Explore Q13UJ9 Go to UniProtKB: Q13UJ9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q13UJ9
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP (Subject of Investigation/LOI) Query on ADP Download:Ideal Coordinates CCD File SDF format, chain W [auth C] MOL2 format, chain W [auth C] mmCIF format, chain W [auth C]	W [auth C]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain W [auth C] Interactions & Density Focus chain W [auth C]
AMP (Subject of Investigation/LOI) Query on AMP Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain FA [auth D] SDF format, chain N [auth B] MOL2 format, chain E [auth A] MOL2 format, chain FA [auth D] MOL2 format, chain N [auth B] mmCIF format, chain E [auth A] mmCIF format, chain FA [auth D] mmCIF format, chain N [auth B]	E [auth A], FA [auth D], N [auth B]	ADENOSINE MONOPHOSPHATE C₁₀ H₁₄ N₅ O₇ P UDMBCSSLTHHNCD-KQYNXXCUSA-N		Interactions Focus chain E [auth A] Focus chain FA [auth D] Focus chain N [auth B] Interactions & Density Focus chain E [auth A] Focus chain FA [auth D] Focus chain N [auth B]
PG4 Query on PG4 Download:Ideal Coordinates CCD File SDF format, chain O [auth B] SDF format, chain GA [auth D] MOL2 format, chain O [auth B] MOL2 format, chain GA [auth D] mmCIF format, chain O [auth B] mmCIF format, chain GA [auth D]	GA [auth D], O [auth B]	TETRAETHYLENE GLYCOL C₈ H₁₈ O₅ UWHCKJMYHZGTIT-UHFFFAOYSA-N		Interactions Focus chain GA [auth D] Focus chain O [auth B] Interactions & Density Focus chain GA [auth D] Focus chain O [auth B]
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain Z [auth C] SDF format, chain Y [auth C] SDF format, chain V [auth B] SDF format, chain U [auth B] SDF format, chain T [auth B] SDF format, chain S [auth B] SDF format, chain R [auth B] SDF format, chain Q [auth B] SDF format, chain M [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] SDF format, chain JA [auth D] SDF format, chain J [auth A] SDF format, chain IA [auth D] SDF format, chain I [auth A] SDF format, chain HA [auth D] SDF format, chain H [auth A] SDF format, chain EA [auth C] SDF format, chain DA [auth C] SDF format, chain CA [auth C] SDF format, chain BA [auth C] SDF format, chain AA [auth C] MOL2 format, chain Z [auth C] MOL2 format, chain Y [auth C] MOL2 format, chain V [auth B] MOL2 format, chain U [auth B] MOL2 format, chain T [auth B] MOL2 format, chain S [auth B] MOL2 format, chain R [auth B] MOL2 format, chain Q [auth B] MOL2 format, chain M [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain JA [auth D] MOL2 format, chain J [auth A] MOL2 format, chain IA [auth D] MOL2 format, chain I [auth A] MOL2 format, chain HA [auth D] MOL2 format, chain H [auth A] MOL2 format, chain EA [auth C] MOL2 format, chain DA [auth C] MOL2 format, chain CA [auth C] MOL2 format, chain BA [auth C] MOL2 format, chain AA [auth C] mmCIF format, chain Z [auth C] mmCIF format, chain Y [auth C] mmCIF format, chain V [auth B] mmCIF format, chain U [auth B] mmCIF format, chain T [auth B] mmCIF format, chain S [auth B] mmCIF format, chain R [auth B] mmCIF format, chain Q [auth B] mmCIF format, chain M [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain JA [auth D] mmCIF format, chain J [auth A] mmCIF format, chain IA [auth D] mmCIF format, chain I [auth A] mmCIF format, chain HA [auth D] mmCIF format, chain H [auth A] mmCIF format, chain EA [auth C] mmCIF format, chain DA [auth C] mmCIF format, chain CA [auth C] mmCIF format, chain BA [auth C] mmCIF format, chain AA [auth C]	AA [auth C] BA [auth C] CA [auth C] DA [auth C] EA [auth C] AA [auth C], BA [auth C], CA [auth C], DA [auth C], EA [auth C], H [auth A], HA [auth D], I [auth A], IA [auth D], J [auth A], JA [auth D], K [auth A], L [auth A], M [auth A], Q [auth B], R [auth B], S [auth B], T [auth B], U [auth B], V [auth B], Y [auth C], Z [auth C]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain AA [auth C] Focus chain BA [auth C] Focus chain CA [auth C] Focus chain DA [auth C] Focus chain EA [auth C] Focus chain H [auth A] Focus chain HA [auth D] Focus chain I [auth A] Focus chain IA [auth D] Focus chain J [auth A] Focus chain JA [auth D] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain Q [auth B] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain Y [auth C] Focus chain Z [auth C] Interactions & Density Focus chain AA [auth C] Focus chain BA [auth C] Focus chain CA [auth C] Focus chain DA [auth C] Focus chain EA [auth C] Focus chain H [auth A] Focus chain HA [auth D] Focus chain I [auth A] Focus chain IA [auth D] Focus chain J [auth A] Focus chain JA [auth D] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain Q [auth B] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain Y [auth C] Focus chain Z [auth C]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain X [auth C] SDF format, chain P [auth B] SDF format, chain G [auth A] MOL2 format, chain X [auth C] MOL2 format, chain P [auth B] MOL2 format, chain G [auth A] mmCIF format, chain X [auth C] mmCIF format, chain P [auth B] mmCIF format, chain G [auth A]	G [auth A], P [auth B], X [auth C]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain P [auth B] Focus chain X [auth C] Interactions & Density Focus chain G [auth A] Focus chain P [auth B] Focus chain X [auth C]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.49 Å
R-Value Free: 0.249 (Depositor), 0.248 (DCC)
R-Value Work: 0.196 (Depositor), 0.199 (DCC)
R-Value Observed: 0.199 (Depositor)

Diffraction Data:

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 66.424	α = 90
b = 169.4	β = 90
c = 170.618	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHASER	phasing
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-21

Deposition Author(s):

Seattle Structural Genomics Center for Infectious Disease (SSGCID)

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	75N93022C00036
National Institutes of Health/Office of the Director	United States	S10OD030394
