2B5O

ferredoxin-NADP reductase

PDB DOI: https://doi.org/10.2210/pdb2B5O/pdb

Classification: OXIDOREDUCTASE
Organism(s): Picosynechococcus sp. PCC 7002
Mutation(s): No

Deposited: 2005-09-29 Released: 2005-10-11
Deposition Author(s): Sawaya, M.R., Kerfeld, C.A., Gomez-Lojero, C., Krogmann, D., Bryant, D.A., Yeates, T.O.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free: 0.235
R-Value Work: 0.178
R-Value Observed: 0.184

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.4 of the entry. See complete history.

Literature

Crystal Structure of Ferredoxin-NADP reductase from Synechococcus sp. (PCC 7002)

Sawaya, M.R., Kerfeld, C.A., Gomez-Lojero, C., Krogmann, D., Bryant, D.A., Yeates, T.O.

To be published.

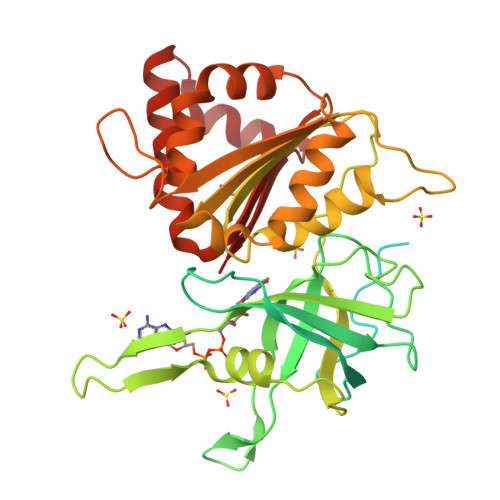

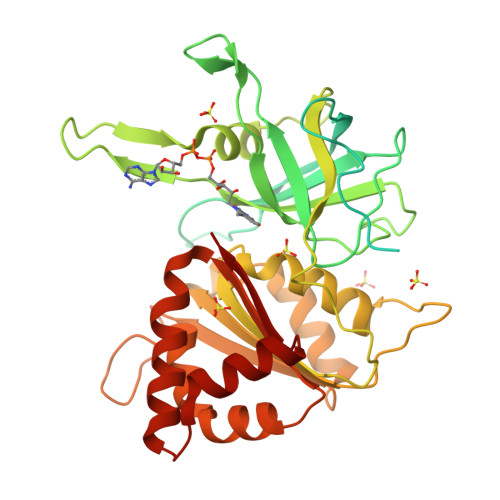

Macromolecule Content

Total Structure Weight: 92.77 kDa
Atom Count: 4,933
Modelled Residue Count: 584
Deposited Residue Count: 804
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Ferredoxin--NADP reductase	A, B	402	Picosynechococcus sp. PCC 7002	Mutation(s): 0 EC: 1.18.1.2
UniProt
Find proteins for P31973 (Picosynechococcus sp. (strain ATCC 27264 / PCC 7002 / PR-6)) Explore P31973 Go to UniProtKB: P31973
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P31973
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
FAD Query on FAD Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain O [auth B] MOL2 format, chain H [auth A] MOL2 format, chain O [auth B] mmCIF format, chain H [auth A] mmCIF format, chain O [auth B]	H [auth A], O [auth B]	FLAVIN-ADENINE DINUCLEOTIDE C₂₇ H₃₃ N₉ O₁₅ P₂ VWWQXMAJTJZDQX-UYBVJOGSSA-N		Interactions Focus chain H [auth A] Focus chain O [auth B] Interactions & Density Focus chain H [auth A] Focus chain O [auth B]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain M [auth B] SDF format, chain N [auth B] SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] SDF format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], I [auth B], J [auth B], K [auth B], L [auth B], M [auth B], N [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free: 0.235
R-Value Work: 0.178
R-Value Observed: 0.184
Space Group: P 3₂ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 121.985	α = 90
b = 121.985	β = 90
c = 74.729	γ = 120

Software Package:

Software Name	Purpose
DENZO	data reduction
SCALEPACK	data scaling
EPMR	phasing
REFMAC	refinement
PDB_EXTRACT	data extraction
Blu-Ice	data collection

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2005-10-11

Deposition Author(s):

Revision History (Full details and data files)

Version 1.0: 2005-10-11
Type: Initial release
Version 1.1: 2008-04-28
Changes: Version format compliance
Version 1.2: 2011-07-13
Changes: Advisory, Refinement description, Version format compliance
Version 1.3: 2017-10-11
Changes: Refinement description
Version 1.4: 2023-08-23
Changes: Data collection, Database references, Derived calculations, Refinement description
